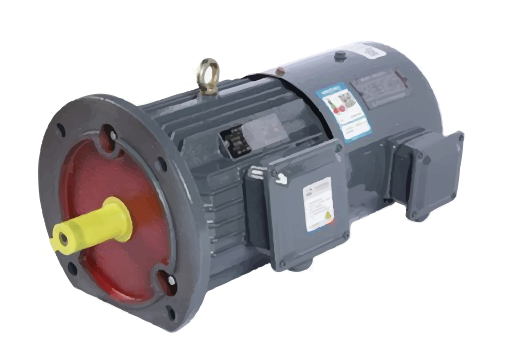

YVF series inverter speed regulation special three-phase asynchronous motor

Home ⁄ Product ⁄ Motor case ⁄ YVF series inverter speed regulation special three-phase asynchronous motor

Motor case

Technical parameter

Engine seat number	H80～355
Frequency conversion range	5-100Hz
Power range	0.55KW～350KW
Class of protection	IP55
Number of poles	2.4.6.8
Cooling mode	IC416
Rated voltage	380V
Insulation class	Grade F
Reference frequency	50Hz
Installation mode	IMB3, IMB35, IMB5, etc

Productfeatures

High strength cast iron construction
Beautiful in shape
High efficiency
Low noise
High reliability
Small vibration

Apply thescenario

YVF series variable frequency speed regulating special three-phase asynchronous motor is a kind of special motor powered by variable frequency speed regulating device. The series motor can realize stepless speed regulating in the system composed of variable frequency speed regulating device, so as to achieve the purpose of energy saving and automatic control. And equipped with an independent cooling fan to ensure a good cooling effect at different speeds, with high-precision sensor, can achieve high-precision closed-loop control. Widely used in machine tools, light industry, textile, metallurgy and other industries.
